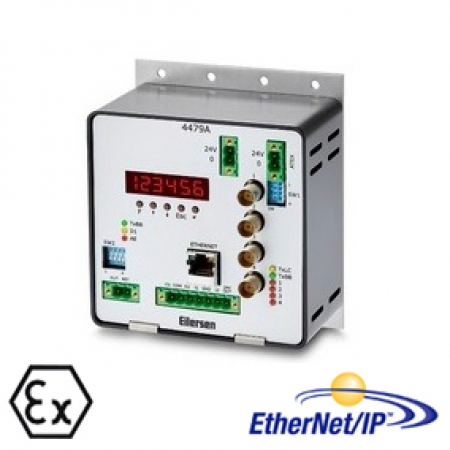

Analog Output Module 4X79A

Analog output weighing module featuring a LED display, 4-20mA or 0-10Vdc active analog output and digital EtherNet interface. The module also features four I/O for level alarms and remote zeroing. This module can directly connect to up to four digital load cells.



Type: 4X79A

Interface: Analog output (4-20mA or 0-10Vdc active output) and Ethernet interface



Special features:

  • Analog 4-20mA or 0-10Vdc ACTIVE output
  • Digital EtherNet interface
  • Six character LED display
  • 2 digital inputs + 2 digital outputs
  • Weighing module for up to 4 digital load cells
  • Can show the weight on the connected load cells
  • Can show the summed weight for the connected load cells
  • Configurable measuring time (20ms -> 4sec)
  • 16bit D/A converter
  • Setup via dip switches
  • For ATEX when supplied by power supply type 4051A
  • The power supply 4051A and module type 4X70A must be installed outside the hazardous zone
  • Plug-and-play installation with Eilersen digital load cells
  • Input for zeroing
  • A "Digital Junction Box" that can be mounted near the load cells or in a central panel
  • Application specific software can be made by request
  • Made in Denmark

Options:

  • Customized application software
  • Mounted in stainless steel housing
  • Prepared for panel mounting on DIN rail



CE         EtherNet IP
