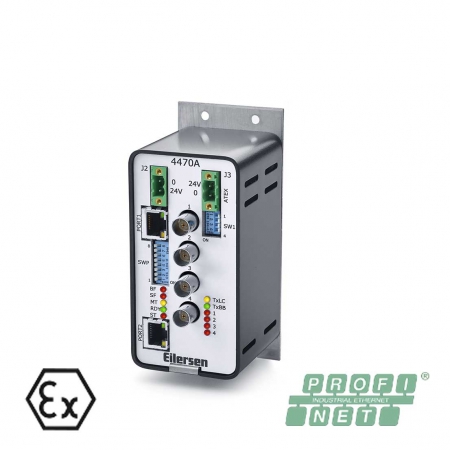

ATEX PROFINET Interf. Mod. 4X70A

ATEX certified (zone 1, 2, 21, 22) PROFINET interface module. For directly interfacing up to four digital ATEX load cells via PROFINET. The interface module type 4X70A can also be used in non-ATEX installations.



Type: 4X70A

Interface: PROFINET



Special features:

  • PROFINET output
  • Made in Denmark
  • Weighing module for up to 4 digital load cells
  • For ATEX and non-ATEX applications
  • Plug-and-play installation with Eilersen digital load cells
  • Advanced digital filters (configurable)
  • A ”Digital Junction Box” that can be mounted near the load cells or in a central panel
  • Small Form Factor
  • Setup via dip switches
  • For ATEX when supplied by power supply type 4051A
  • Application software can be made by request
  • The power supply 4051A and module type 4X70A must be installed outside the hazardous zone

Options:

  • Prepared for panel mounting on DIN rail
  • Mounted in stainless steel housing
  • Customized application software
  • OEM version

Interface module for directly interfacing up to four digital ATEX load cells via PROFINET  ATEX gecertificeerde weegmodule, ook voor non-ATEX applicaties      CE
