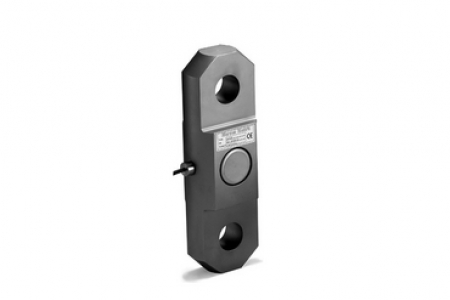

Tension Load Cell-SOTD

The robust digital tension load cell type SOTD is produced in stainless steel. It is used for weighing suspended vessels, in cranes, lifts and for measuring forces in heavy duty equipment. ATEX versions are available.



Type: SOTD

Capacity (Emax): 2000, 5000, 10000, 20000 kg

Accuracy: Industrial 0.10%

Overload tolerance: Up to 1.000% of rated capacity



Special features:

  • Robust capacitive technology
  • Made in Denmark
  • Patented high reliability capacitive sensor
  • High tolerance of up to 1.000% overload
  • Stainless steel
  • Sealed to IP67
  • Cable length up to 100meters
  • Withstands welding voltages and ESD
  • Capacity (Emax): 2000, 5000, 10000, 20000kg
  • Accuracy: Industrial 0.10%
  • Load cell cable replaceable
  • Pre-calibrated with signal in kg or N
  • Calibration independent of cable length
  • Easy mechanical and electrical installation

Options:

  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100meters
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Click here for examples of SOTD Digital Tension Load Cells
