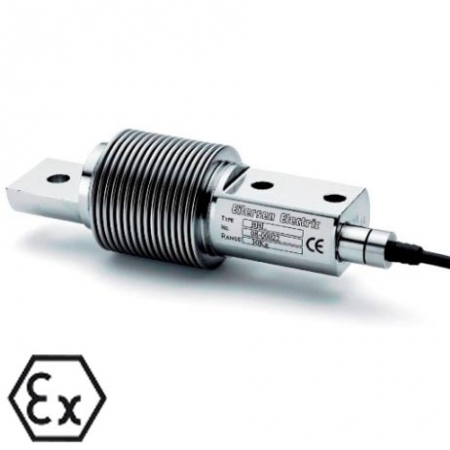

Beam Load Cell-BBL(A)

Beam Load Cell-BBL(A)

Download bijlagen:

Robust digital (ATEX certified) beam load cell for dynamic weighing, process weighing and general industrial weighing. Application examples are belt scales, platform scales, small vessels, filling machines, process equipment etc. in ATEX (Ex) environment. The load cell can also be used in non-ATEX (ex) rated area.



Type: BBL (Non-ATEX), BBL(A) (ATEX),

Capacity (Emax): 2, 5, 10, 20, 30, 50, 100, 150, 250, 500, 1000 kg

Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%

Overload tolerance: Up to 1000% of rated capacity



Special features:

  • BBL(A) is ATEX certified (Zone 1, 2, 21, 22)
  • Made in Denmark
  • Can be used in both ATEX and non-ATEX installations
  • Stainless steel
  • Robust capacitive technology
  • High tolerance of up to 1.000% overload
  • Hermetically sealed to IP68
  • Laser welded
  • Can be supplied with Mud resistant and Halogen free cables for offshore installation
  • Cable length up to 100meters
  • Calibration independent of cable length
  • High accuracy, High resolution
  • Capacity (Emax): 2, 5, 10, 20, 30, 50,100, 150, 250, 500, 1000kg
  • Accuracy: Industrial 0.10%, Precision 0.05%, High Precision 0.025%
  • Load cell cable replaceable
  • Withstands welding voltages and ESD
  • Easy mechanical and electrical installation

Options:

  • ATEX (Zone 1, 2, 21, 22) version type BBLA
  • ATEX II 2G Ex ia IIC T6 / ATEX II 2D Ex iaD 21 T85°C
  • Mounting kits available
  • Load cell cable length 10, 20, 50 or 100meters
  • Mud resistant and halogen free cables for offshore installation
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)

Click here for examples of BBL BBLA Digital Beam Load Cells
