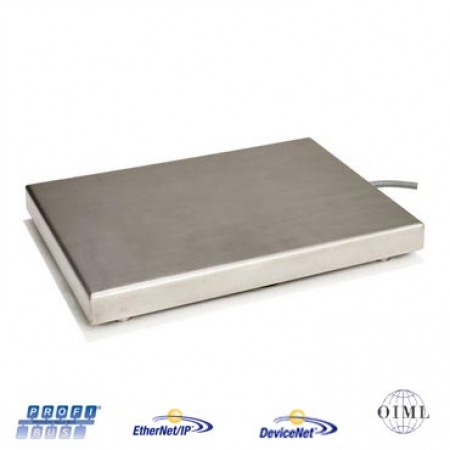

Eilersen robust low profile platform scales are used in wet and tough environments with overloads, vibrations, high humidity and corrosion where high accuracies are required. The platform scales are maintenance-free and fulfil the protection degree IP68.
Type: Platform Scales
Capacity (Emax): Up to 5000 kg
Overload tolerance: Up to 1000%
Options:
- Certified versions for legal for trade
- Specific dimensions, range and materials
- Local indicator and/or direct interface to PC, PLC or SCADA systems
Special features:
- Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications
- Made in Denmark
- Robust capacitive technology
- Patented high reliability capacitive sensor (IP68)
- High tolerance of up to 1000% overload
- High accuracy and high resolution
- Digital filters for reducing the influence from vibrations
- Cable length up to 100meters
- Scale calibration is independent of cable length
- A range of software modules for standard weighing, special purposes, and customer specific applications
- The status of each load cell in the scale can be monitored allowing for easy maintenance
- Local indicator and/or direct 4-20mA, 0-10Vdc, RS485, Modbus ASCII/RTU, DeviceNet, EtherNet IP, Profibus DP, EtherCAT, ProfiNet (pending) interface
- Can be supplied with ramps or for installation in a pit
- Ultra low profile version available
Click here for examples of Platform Scales
