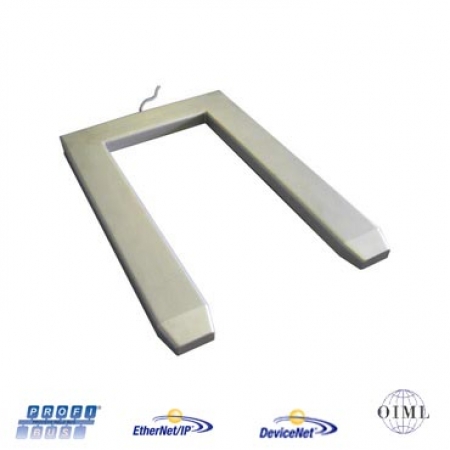

Pallet U Scales

Pallet U Scales

Download bijlagen:

Eilersen robust and reliable pallet scales are used in wet and tough industrial environments with overloads, vibrations, high humidity and corrosion. The pallet scales are maintenance-free and fulfil the protection degree IP68.



Type: Pallet U Scales

Capacity (Emax): Up to 2000 kg

Overload tolerance: Up to 500%



Options:

  • Certified versions for legal for trade
  • Specific dimensions, range and materials
  • Local indicator and/or direct interface to PC, PLC or SCADA systems

Special features:

  • Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications
  • Robust capacitive technology
  • Made in Denmark
  • Patented high reliability capacitive sensor (IP68)
  • High tolerance of up to 1000% overload
  • High accuracy and high resolution
  • Digital filters for reducing the influence from vibrations
  • Scale calibration is independent of cable length
  • Cable length up to 100meters
  • A range of software modules for standard weighing, special purposes, and customer specific applications
  • The status of each load cell in the scale can be monitored allowing for easy maintenance
  • Local indicator and/or direct 4-20mA, 0-10Vdc, RS485, Modbus ASCII/RTU, DeviceNet, EtherNet IP, Profibus DP, EtherCAT, ProfiNet (pending) interface

Click here for examples of Pallet U Scales



ProfibusEtherNet IPDeviceNetOIML   CE
