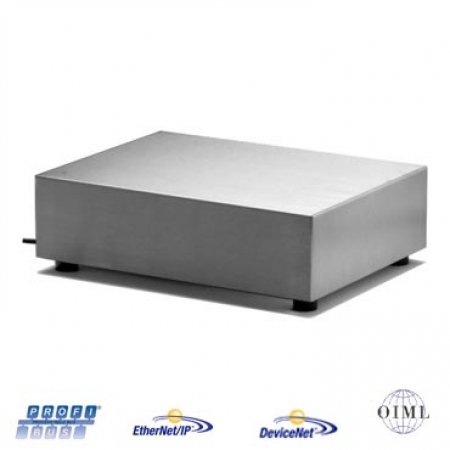

Eilersen bench scales are used in tough environments. There are overloads, vibrations, high humidity and corrosion and high accuracies are required. The bench scales are maintenance-free and fulfil the protection degree IP68. Eilersen bench scales are also available with automatic compensation for seaway.
Type: Bench Scale
Capacity (Emax): Up to 500 kg
Overload tolerance: Up to 1000%
Options:
- Specific dimensions, range and materials
- Local indicator and/or direct interface to PC, PLC or SCADA systems
- Certified versions for legal for trade
- Compensation for seaway
Special features:
- Accuracy Dimensions, range and materials (e.g. AISI304 or 316, epoxy coating etc.) according to customer specifications
- Robust capacitive technology
- Made in Denmark
- Patented high reliability capacitive sensor (IP68)
- High tolerance of up to 1000% overload
- High accuracy and high resolution
- Digital filters for reducing the influence from vibrations
- Scale calibration is independent of cable length
- Cable length up to 100meters
- A range of software modules for standard weighing, special purposes, and customer specific applications
- The status of each load cell in the scale can be monitored allowing for easy maintenance
- Local indicator and/or direct 4-20mA, 0-10Vdc, RS485, Modbus ASCII/RTU, DeviceNet, EtherNet IP, Profibus DP, EtherCAT, ProfiNet (pending) interface
- Eilersen bench scales are also available with automatic compensation for seaway
Click here for examples of Bench Scales
