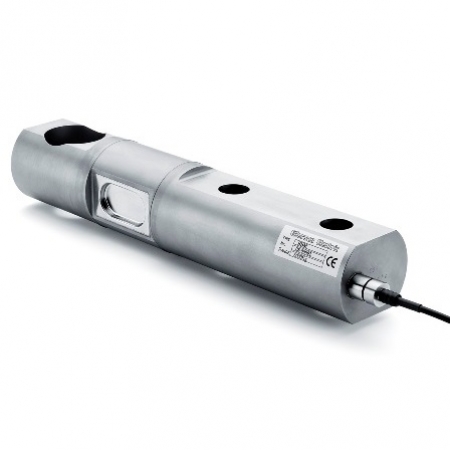

Heavy Duty Beam Load Cell-SDM70

Robust digital heavy duty beam load cell produced in stainless steel and hermetically sealed to IP68. For example for process weighing, industrial weighing and tough applications such as on-board truck weighing, offshore, steel industry etc. OIML certified (up to C5) according to R60.



Type: SDM 70

Capacity (Emax): 1000, 2000, 3000 kg

Accuracy: Industrial 0.10% up to OIML class C5

Overload tolerance: Up to 500% of rated capacity



Special features:

  • Stainless steel
  • Made in Denmark
  • Robust capacitive technology
  • Patented high reliability capacitive sensor
  • OIML R60 accuracy classes up to C5
  • High tolerance of up to 1.000% overload
  • Hermetically sealed to IP68
  • Laser welded
  • High accuracy, High resolution
  • Digital filters
  • Capacity (Emax): 1000, 2000, 3000kg
  • Accuracy: Industrial 0.10% up to OIML class C5
  • Cable length up to 100meters
  • Calibration independent of cable length
  • Load cell cable replaceable
  • Withstands welding voltages and ESD
  • Easy mechanical and electrical installation

Options:

  • Mounting kits available
  • Customized versions available
  • Load cell cable length 10, 20, 50 or 100meters
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)

Click here for examples of SDM70 Digital Beam Load Cells
