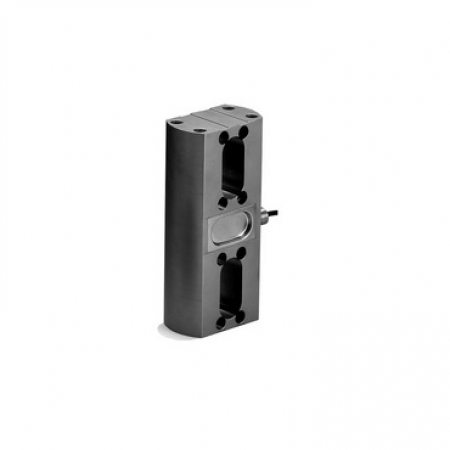

Heavy Duty Load Cell-SDLX

Heavy Duty Load Cell-SDLX

Download bijlagen:

The robust digital load cell type SDLX is produced in stainless steel. It is designed for the extremely tough environment in lift systems for waste management with shock loads and vibrations. The load cell can also be used in general industrial weighing applications. OIML certified to class C3 according to OIML R60.



Type: SDLX

Capacity (Emax): 300 kg

Accuracy: OIML class C3

Overload tolerance: Up to 500% of rated capacity



Special features:

  • Robust capacitive technology
  • Made in Denmark
  • Patented high reliability capacitive sensor
  • OIML R60 accuracy classes up to C3
  • High tolerance of up to 500% overload
  • Stainless steel
  • Laser welded
  • Hermetically sealed to IP68
  • High accuracy, High resolution
  • Digital filters
  • Capacity (Emax): 300kg
  • Accuracy: OIML class C3
  • Cable length up to 100meters
  • Calibration independent of cable length
  • Load cell cable replaceable
  • Easy mechanical and electrical installation
  • Optional special load cell cable
  • Withstands welding voltages and ESD

Options:

  • Customized load cell capacity
  • Load cell cable length 10, 20, 50 or 100meters
  • Load cell cable type
  • Special Teflon load cell cable available for very high temperature (can be used up to 100 degrees Celsius)
  • Special PE load cell cable available for freezing low temperature (can be used down to -50 degrees Celsius)

Click here for examples of SDLX Heavy Duty Load Cells
