Delta P - Hygenic Process Equipment

C Header afsluiters 28 01 Definox

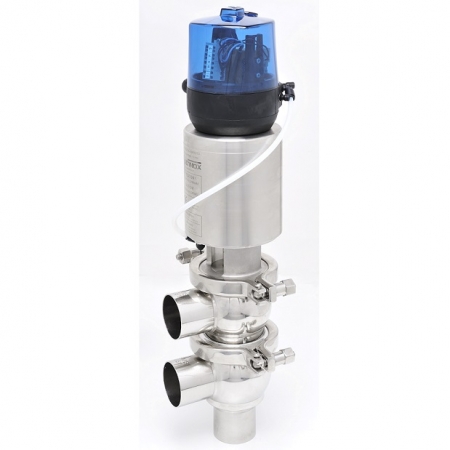

Single seal. ch.over valve DCX3-DCX4

Single seal. ch.over valve DCX3-DCX4

Features

  • Fitted as standard with a floating PFA valve seal that can be cleaned and offers outstanding tightness at high temperatures and good resistance to chemical products
  • Dismountable pneumatic valve actuator that can be easily transformed into NO (Normally Open), NC (Normally Closed) or DA (Double Acting)
  • Connection of actuators and shut-off units with clamps for easier maintenance and offering a variety of options
  • Spherical body with thick walls guaranteeing excellent resistance to expansion constraints and offering a variety of configurations: + - T - L - L/L - T/L

Materials

  • Body:  stainless steel 1.4404 / 316L
  • Shut-off unit: stainless steel 1.4404 / 316L
  • Valve seal: floating PFA - EPDM, fluorinated elastomer (FKM) or silicon
  • Other seals: EPDM - fluorinated elastomer (FKM) or silicon
  • Operating devices: stainless steel 1.4301 / 304

Service conditions

  • Max. temperature: +140oC/+284oF
  • Min. temperature: -5oC/+23oF
  • Max. working pressure: 8 bar (800 kPa)/116 psi
  • Actuator air supply pressure: min. 5.5 bar (550 kPa) /80 psi; max. 8 bar (800 kPa)/116 psi
  • Vacuum resistance: 0.4 cm3/s

Connection types / Standards

  • Welded / SMS - DIN - US standard
  • Threaded / SMS - DIN
  • Liner-nut / SMS - DIN
  • Clamp / US standard

Options

  • Elastomer seal tightness
  • Long stroke for maximum valve disengage
