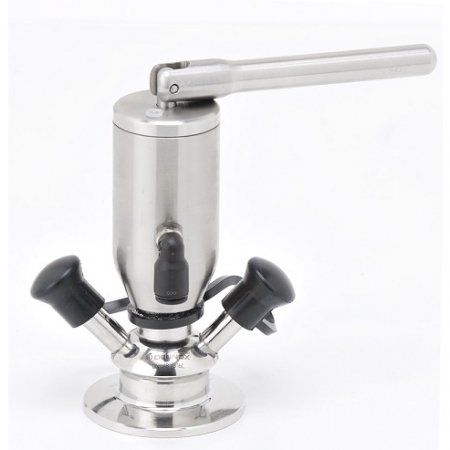

Manual sampling valve PEX-PEAX

Manual sampling valve PEX-PEAX

Technische gegevens

  • Dimensions: DIN from DN 6/8 to DN 16/18
  • Operating devices: MANUAL - PEX: ergonomic handle. AUTOMATIC - PEAX: compact pneumatic valve actuator; stainless steel operating lever for DN6 and 10; for manual control in an automatic cycle.
  • Signalling equipment: Detection possible on request.
  • Surface conditions: RA exterior = 0.8 µm (180 grit). RA interior = 0.8 µm (180 grit) standard, 0.4 µm (240 grit) on request.

Features

  • Simple and secure sampling solution
  • Flame sterilisation (1 outlet PEX1 / PEAX1) or steam injection sterilisation or cleaning with a sterilising agent (2 outlets PEX2 / PEAX2)
  • Neutral diaphragm available FDA certified
  • Quick and easy to change operating devices

Materials

  • Body: stainless steel 1.4404 / 316L machined from solid
  • Handle: white plastic material or stainless steel 1.4301 / 304
  • Actuator: stainless steel 1.4301 / 304
  • Diaphragm: elastomer (fluorinated elastomer (FKM) - EPDM or white silicon)

Service conditions

  • Max. temperature: +120oC/+248oF
  • Min. temperature: 0oC/+32oF
  • Max. working pressure: 10 bar (1000 kPa)/145 psi
  • Actuator air supply pressure: 4 to 6 bar (400 to 600 kPa)/58 to 87 psi
  • Air connection: Ø 4/6

Valve body connections

  • Wall welded
  • Clamp
  • Pipe line welded
  • Males gas end
