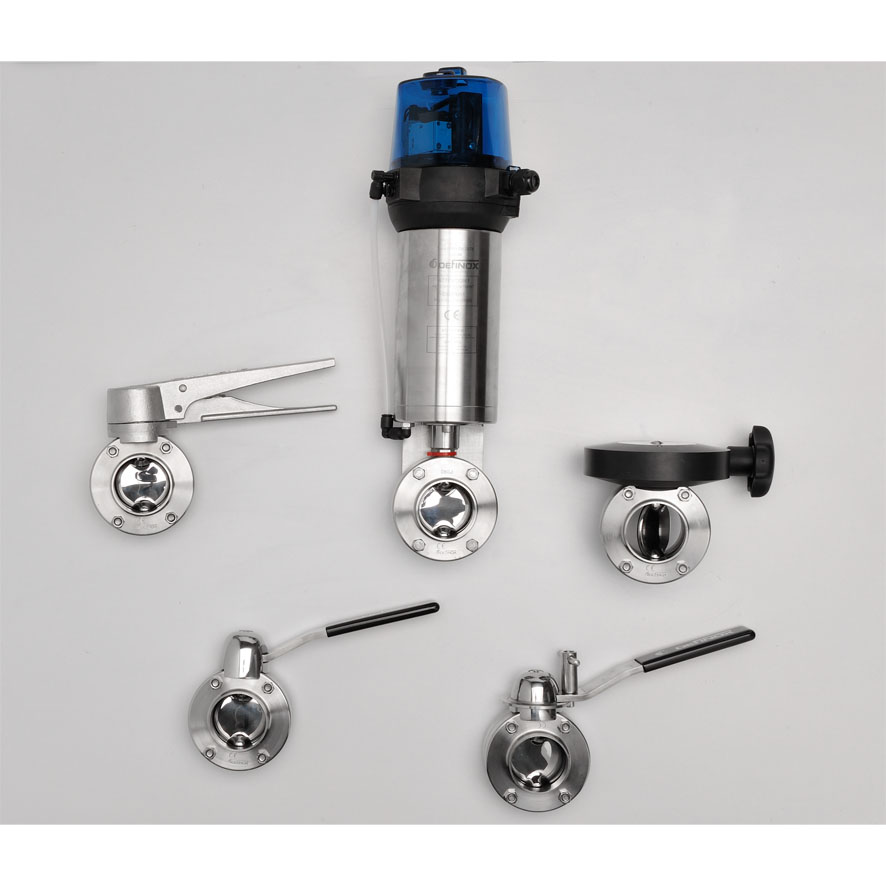

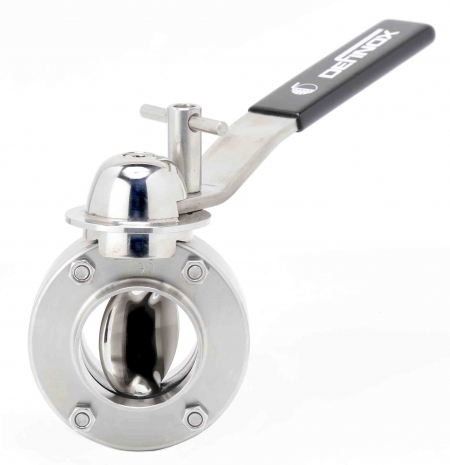

Butterfly valve DPX - DPAX

Butterfly valve DPX - DPAX

Technische gegevens

  • Dimensions: SMS - SIN - US; from DN 25 (1") to DN 150 (6")
  • Operating devices: MANUAL - DPX: right-opening standard or multiposition handle. Left-opening standard or multiposition handle. Simple adjusting handle. Micrometric handle. AUTOMATIC - DPAX: Single or double acting valve actuator.
  • Signalling equipment: Visible on single or double stainless steel bracket. Point-to-point or AS-i control unit. ICS (from DN 25 to DN 150), ACS (from DN 25 to DN 150)
  • Surface conditions: RA exterior = 1.2 µ (150 grit); RA interior = 0.8 µ (180 grit)

Used in numerous process and auxiliary fluid applications, the Definox butterfly valve has various grades of seals and numerous accessories which make it a polyvalent and reliable product.



Features

  • Reliable and economical technology
  • Quick assembly and disassembly
  • Can be used for a variety of applications
  • Low pressure loss and line transfer without retention
  • Easy to adjust operating devices

Materials

  • Half body: stainless steel 1.4404/316L
  • Disc: stainless steel 1.4404/316L
  • Seal: EPDM - fluorinated elastomer (FKM) or silicon
  • Operating devices: stainless steel 1.4301/304

Service conditions

  • Max. temperature: +120oC / +248oF
    (temperature depending on seal type)

  • Min. temperature: 0oC / +32oF

  • Max. working pressure:
    • 14 bar (1400 kPa)/203 psi DN 25 to DN 51
    • 12 bar (1200 kPa)/174 psi DN 63 to DN 80
    • 10 bar (1000 kPa)/145 psi DN 100
    •   8 bar (800 kPa)/116 psi DN 125 to DN 150
  • Actuator air supply pressure:
    • min. 5.5 bar (550 kPa)/80 psi
    • max. 8 bar (800 kPa)/116 psi
  • Vacuum resistance: 0.4 cm3/s

Butterfly valves DPX DPAX 2
